PoLRE 8-Port 1 Pair UTP Unmanaged Switch

NV-PL-08
Overview

The plug and play PoLRE (Power over Long Reach Ethernet) LPC switch is an 8 port unmanaged ethernet switch. This powerful switch delivers ethernet and PoE over a single pair of wire with 1,200 ft (365 m) reach.

PoLRE was designed to make the migration to IP quick, easy and cost effective by leveraging an existing single pair UTP infrastructure. Benefits include:

  • Accelerating your return on investment by reducing infrastructure costs;
  • Collapsing planning and deployment time;
  • Eliminating infrastructure barriers, risks, disruption and costs;
  • Creating a robust IP platform that is easy to configure, deploy and manage.

Unlike other Ethernet switch technologies, the PoLRE LPC switch offers:

Speed, Reach and Power

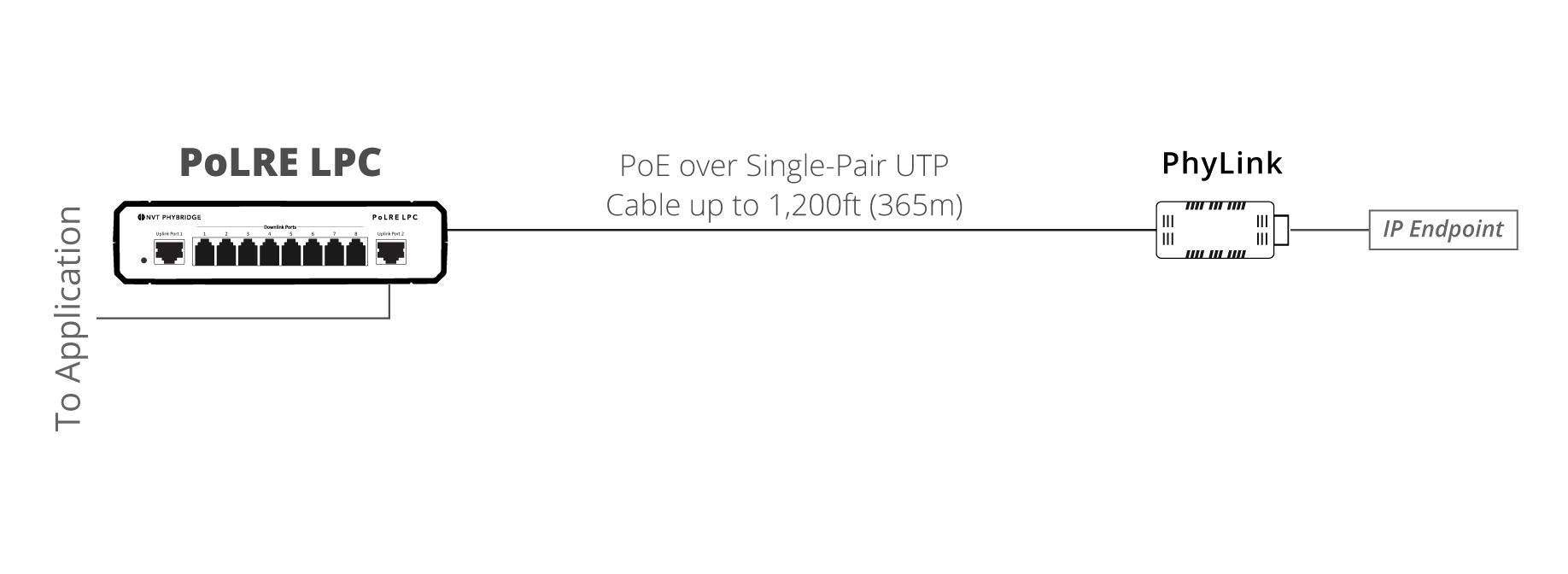

The LPC delivers 10 Mbps (symmetrical, full duplex) and PoE over a single pair of UTP with 1,200 ft (365 m) reach. It is designed to support IP Phones and other IEEE compliant devices. There is no reduction in bandwidth speed based on longer distances.

Simple Deployment

PoLRE LPC was designed to make it simple for small businesses or distributed enterprise to simplify their IP migration. No network configuration required.

POLRE 8

Tech Specs

PoLRE 8 Port Unmanaged Switch Technical Specifications

Model NV-PL-08
Dimensions •1.77” x 7.01” x 4.72” (HxWxD)

• 4.5cm x 17.8cm x 12cm (HxWxD)

•Weight: (0.679 lbs) 0.308 kg

Interface:

Ethernet

Uplink (Trunk IP)

2 RJ45 ports: 10/100 Base-T auto-sensing, independent speed selection, Ethernet IEEE 802.3, CAT5 copper cable
Interface:

Downlink

(PoE and IP to Adapter)

8 x RJ11 Jacks

Maximum Distance: 1200ft (365 m) CAT3 UTP cable,

24 AWG

Speed: 10 Mbps (full duplex)

Power: 15 Watts

Power Supply 48VDC 2A (96 Watts)
Power Consumption 2.9W
Power Injection

(PoE)

48VDC; Endpoint devices must be compliant with

IEEE 802.3af

Operating Temperature 14°F to 115.6°F (-10°C to 45.5°C)
Humidity 10% to 95% (non-condensing) at 95°F (35°C)
External Power Supply External 100w power supply included. Optional higher power supplies available.

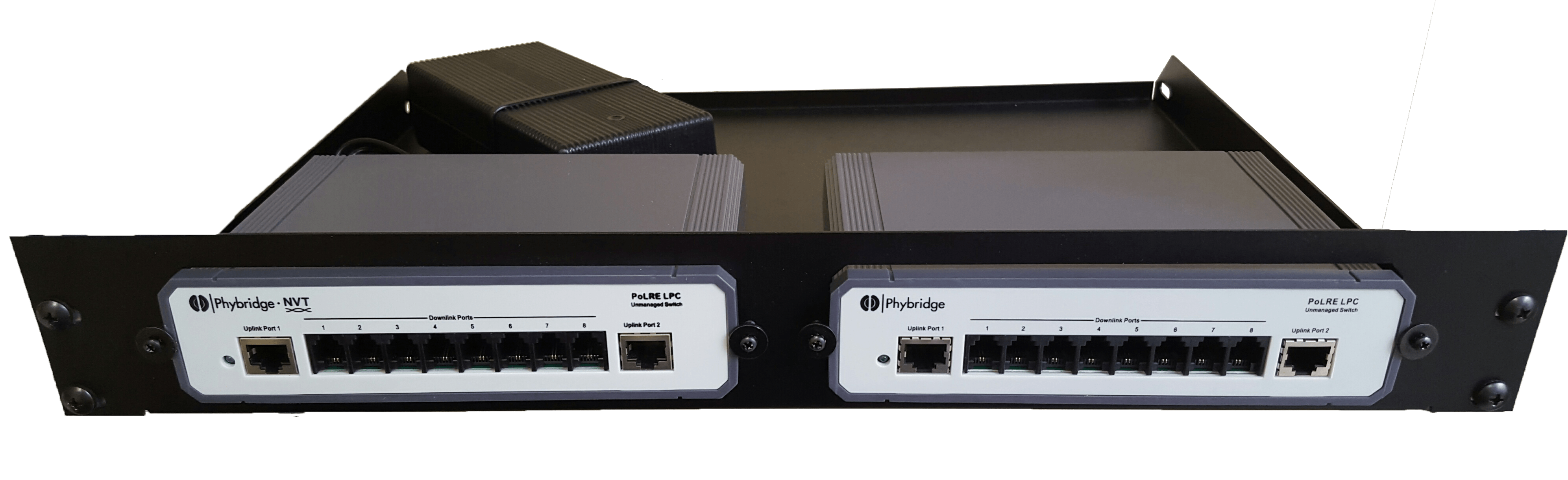

Rack Mount Model NV-PL-RMEC10

Phylink Adapter Technical Specifications

Model NV-PL-PA-011-6 (sold as 6 pack)
Dimensions •0.71” x 1.1” x 2.56” (HxWxD)

•1.8cm x 2.8cm x 6.5cm (HxWxD)

•Weight: 0.78 oz (22 g)

Interface

PoLRE Switch Side)

1 RJ11 port: CAT3 unshielded single twisted pair cable. Between the wall plate and adapter, you can reuse the existing line cord when doing a DNIC/ POTS displacement.
Interface

Ethernet side:

for IP end point device

1 RJ45 port: 10 Base-T
Power Supply 48VDC
Power Consumption 0.9W
Power Injection

(PoE)

DC voltage on RJ45 port:

•54V max

• 37V when 1200ft (365m) away from its PoLRE

Switch powers Class 1, Class 2 and some

Class 3 IEEE 802.3af compliant IP devices

Operating Temperature 32°F to 104°F (0°C to 40°C)
Humidity 10% to 95% (non-condensing) at 95°F (35°C)
Accessories
NV-PL-PA-011-6 The Phylink adapters are sold in packs of 6 and are media converters for the PoLRE switch family. They convert a two wire RJ11 connections into a RJ45 connection for standard Ethernet cable.
NV-PL-150-PWR 48VDC 2A 96 Watt power supply for the LPC switch
NV-PL-RMEC10 Rack mount kit for two PoLRE LPC switches
Documentation
Videos

Extend Your Network



The Economic Report

Phybridge PoLRE featured on Inside Business


Phybridge – A Better Start for the Best Finish

How to build a separate LAN for your IP voice solution


Manager’s Perspective: NMSU PoLRE Experience

Customer Testimonial – Managers Perspective.
NMSU saves over $1 million, fast tracks migration by 3 years eliminating risk and disruption


Operator’s Perspective: NMSU PoLRE Experience


Provider’s Perspective: NMSU PoLRE Experience

Customer Testimonial – Providers Perspective.
NMSU saves over $1 million, fast tracks migration by 3 years eliminating risk and disruption


Wagner College Migrates to IP with Phybridge

IP Migration Made Simple

Learn how NMSU saved over $1 million and fast tracked Migration by 3 years.





Register Your Opportunity

Secure product availability by registering your opportunity!

Transform your Coax

Eliminate barriers to IP camera migration! Learn how.





FAQ

General-FAQ

Where can I buy the NVT Phybridge PoLRE LPC solution?

NVT Phybridge solutions are available through our Distribution Partners. Our list of distributors is constantly growing, please contact us directly for a list of distributors.

What are these solutions?

The NVT Phybridge PoLRE is a Layer 2 Ethernet data switch that provides a complete parallel voice network over existing telephone cabling. The solution allows for a non-disruptive, quick and easy way to deploy IP telephony and Unified Communications (UC) applications. The NVT Phybridge PoLRE LPC comes in 8 port models. The NVT Phybridge PhyLink Adapters are common to both models. It is necessary to have one PhyLink Adapter for every active port on the NVT Phybridge PoLRE.

What is the warranty?

12 month Silver Maintenance, which includes replacement warranty is standard. Gold and Silver Maintenance levels are also available at additional cost at time of purchase.

What is the service and support?

12 month Silver Maintenance, which includes support is standard. Gold and Silver Maintenance levels are also available at additional cost at time of purchase.

What is the competition?

NVT Phybridge is the only company to competitively offer robust solutions that leverage existing infrastructure to provide POE and Ethernet to an endpoint at distance of 1,200 feet or greater.

Do these products support all major VoIP manufacturers?

Yes. Any IP PBX device is supported as the NVT Phybridge PoLRE LPC is an unmanaged networking switch.

Who has tested the NVT Phybridge PoLRE?

Multiple manufacturers, VARs and vendors have tested the NVT Phybridge PoLRE LPC. Please contact us directly for a list of partners.

How is QoS handled?

Because of the point to point topology of the PhyLink Adapter to the NVT Phybridge PoLRE, customized QoS configuration is not required.

What is the maximum PoE Class IP device/phone that can be supported?

Based on the IEEE 802.3af standard, operational testing is required to determine if the Class 3 IP device you have will work in your unique network topology (the longer the two wire length, the less power is available to the IP device.) First, please verify the manufacturer’s IP device power consumption specification, if it is less than 10.6 W then you may be able to use a standard PhyLink Adapter, you will need to test your IP device in the final network topology to ensure the line power draw and IP device power draw does not exceed the 10.6 W. A quick test is to plug the IP device into the PhyLink Adapter and put the IP device into maximum power consumption. For an IP phone this is usually the ringing state (maximize the ring volume), if the phone does not restart or shut down then your IP device and line load is drawing less power than the 10.6 W maximum. The PoLRE limits the current drawn on the RJ45 PoE port. If the power draw of the IP phone (device) and line length exceeds the power that can be provided by the PoLRE for the IP phone, then it may not power up or will reset during operation. If the problem persists re-test the same IP phone at a shorter cable length to verify that problem is related to the IP phone drawing more than the maximum rated at the desired line length.

What IP phones are supported?

All Class 1 and Class 2 and some Class 3 IEEE 802.3af compliant IP devices are supported.

Features-FAQ

Are the NVT Phybridge PoLRE and PhyLink full duplex (sending and receiving data at the same time)?

Yes, traffic between the PoLRE and PhyLink and network ports support full duplex.

Does the NVT Phybridge PoLRE support Auto MDIX?

Yes. Both GBE ports support straight through or cross over cables. The straight through cable is recommended.

What are the data security implications of these devices?

The NVT Phybridge PoLRE LPC is an unmanged networking switch and in most cases security is not necessary. Should you require security features a 24-port PoLRE switch should be purchased.

What is the minimum connection rate?

The PoLRE LPC supports 10 Mbit full duplex at up to 1200 feet on all downlink ports.

Is there a limit to the number of supported devices off one PhyLink?

Yes. Each PhyLink can power one IP device (all Class 2 and some Class 3). Some IP phones do allow additional IP devices plugged into them, like a laptop computer, allowing multiple network devices to function off the single PhyLink connection. (Note: For the daisy chaining configuration you may require additional Earth ground on the PoLRE; please consult the PoLRE LPC Hardware Installation Manual.)

Duplicate of Is the PoLRE SNMP compliant?

The NVT Phybridge PoLRE LPC is an unmanaged switch and as such SNMP is not supported.

How is the Power over Ethernet provided to the IP phone?

The NVT Phybridge PoLRE provides power over the PhyLink’s RJ45 port, the voltage provided is IEEE 802.3af compliant. We would be considered a mid-span POE device.

What speeds are provided/supported?

The per port signalling rate is 10BASET on each port. This speed is not affected by distance or cable quality.

What are the specifications of the PhyLink RJ45 port?

The RJ45 port is a 10 Mbps Full Duplex Ethernet port that provides IEEE 802.3af compliant voltage to an IP device connected to the RJ45 port.

Can I attach any Ethernet device?

Yes. The NVT Phybridge PhyLink supports Ethernet devices that are IEEE 802.3af compliant. The connection rate is 10 BaseT. The NVT Phybridge PoLRE LPC supports 10/100/1000 BaseT connections.

What is the power consumption of PhyLink?

The PhyLink consumes a maximum of 1 W.

What is the operating temperature of the PhyLink?

The PhyLink can operate in areas with ambient temperature from 0 to 40 degrees C. The PhyLink does not operate above ambient temperature and should be located in an area that gets air circulation.

What is the operating temperature of the PoLRE?

The PoLRE LPC can operate in areas with ambient temperature from 0 to 50 degrees C.

Do these products support all major VoIP manufacturers?

Yes. Any IP PBX device is supported as the NVT Phybridge PoLRE is an unmanaged layer 2 networking switch.

What IP phones are supported?

All Class 1 and Class 2 and some Class 3 IEEE 802.3af compliant IP devices are supported.

What is the maximum POE Class IP device/phone that can be supported?

Based on the IEEE 802.3af standard: Operational testing is required to determine if the Class 3 IP device you have will work in your unique network topology (the longer the two wire length, the less power is available to the IP device.) First, please verify the manufacturer’s IP device power consumption specification, if it is less than 10.6 W then you may be able to use a standard PhyLink, you will need to test your IP device in the final network topology to ensure the line power draw and IP device power draw does not exceed the 10.6 W. A quick test is to plug the IP device into the PhyLink and put the IP device into maximum power consumption. For an IP phone this is usually the ringing state (maximize the ring volume), if the phone does not restart or shut down then your IP device and line load is drawing less power than the 10.6 W maximum. The PoLRE limits the current drawn on the RJ45 PoE port. If the power draw of the IP phone (device) and line length exceeds the power that can be provided by the PoLRE for the IP phone, then it may not power up or will reset during operation. To recover, unplug the RJ45 cable from the PhyLink. If the problem persists re-test the same IP phone at a very short cable length to verify that problem is related to the IP phone drawing more than the maximum rated at the desired line length.

Do these solutions support video phone applications?

The PhyLink supports 10 BASET connection speeds, verify with your video phone VoIP device manuals the recommended minimum data bandwidth required.

Will the PoLRE or IP devices work without power?

The PoLRE is the only component that requires connection to a power source. The PhyLink and IP devices plugged into the PhyLink receive their power from the NVT Phybridge PoLRE. The NVT Phybridge PoLRE is a complete PoE solution; no local power pucks or adapters are required for the PhyLink or for the IP device plugged into the PhyLink.

How does the NVT Phybridge PoLRE LPC work with VLANs?

The PoLRE LPC is an unmanaged networking switch and VLAN cannot be configured. No VLAN tags will be stripped though when passing through the LPC, allowing VLAN setup on devices as required.

How is QoS handled?

The PoLRE LPC switch transforms the existing, proven reliable voice infrastructure into an IP path with Power ideal for IP Telephony.

Does the NVT Phybridge PoLRE LPC support CDP and/or LLDP?

The PoLRE LPC allows both CDP and LLDP pass-through.

Installation-FAQ

How do I install the NVT Phybridge PoLRE LPC?

Place the PoLRE LPC in desired location. Unplug your legacy telephone system (digital phones and PBX) from the two wire infrastructure that will be connected to the PoLRE. Warning: the PoLRE can damage legacy equipment if it is left connected. Connect AC cable and optional ground connection, turn on the PoLRE. Connect PoLRE Line Interfaces to the prepared RJ11 Connectors from the two wire infrastructure. Connect the NVT Phybridge PoLRE LPC GBE1 port directly to the IP PBX or selected Ethernet switch. Connect the PhyLink to the RJ11 connection at desired wall locations. Connect the chosen IP phone to the RJ45 port on the PhyLink. The chosen IP phones will register with the IP PBX. Use your new IP telephony system (or optional PC port from IP phone).

How do I configure the NVT Phybridge PoLRE LPC?

The PoLRE LPC is an unmanaged networking switch and does not require configuration.

What is the default user name and password in the PoLRE LPC?

The PoLRE LPC is an unmanaged switch and does not have a login.

What is the default IP address on the PoLRE LPC?

The PoLRE LPC is an unmanaged switch and thus does not have an IP Address.

What do the LEDs on the PhyLink represent?

The left LED indicates activity on the line when the PoLRE and the PhyLink are communicating. This can be slow or fast depending on many factors. The right LED indicates the connection between the PhyLink and the IP device connected to it. This will blink slowly or rapidly based on network activity.

How do I calculate the UPS (Uninterruptable Power Supply) requirements for the NVT Phybridge PoLRE LPC?

The UPS allows the materials to be switched to emergency battery power for up to several minutes or longer in case of electrical problems, including; power line disturbances, outages, overvoltage, under-voltage, voltage spikes and lightening. To determine more accurate UPS power requirements you should determine the following:

How much power the PoLRE LPC and PhyLinks consumes?

The PL-048 will draw 2.9W and the PhyLink will consume 1 W of power. Use these values to help calculate your UPS usage.

Please see our power calculators in the partner portal for more detailed explanation on this.

How do I know if my cabling will support these devices?

The NVT Phybridge PoLRE and PhyLink are designed to work with 24 and 26 AWG (American Wire Gage) wiring. We recomend use of CAT3 or better cabling for installation of the PoLRE. However this does not mean the PoLRE will not work on cabling that does not meet CAT3 specifications.

Can the PoLRE LPC damage old legacy phone equipment if left plugged into wiring?

Yes. The PoLRE LPC provides up to 54V DC on a single pair. This voltage can potentially damage some digital and legacy phone equipment. Please ensure all old legacy phones are disconnected from the wiring infrastructure before you power up the NVT Phybridge PoLRE.

Duplicate of Where is the best location to put the PhyLink?

The best location for the PhyLink is as close to the RJ11 (standard telephone jack) connection as possible; on the wall next to the RJ11 wall plate or near the RJ11 jack in a cubicle. It is recommended to have the PhyLink in a place where there is reasonable airflow.

How do I prepare to install the NVT Phybridge PoLRE LPC?

The NVT Phybridge PoLRE LPC may be physically installed in the server room or telephone closet prior to use. Ensure the PoLRE will have adequate air flow. Before powering the PoLRE LPC, ensure all legacy digital sets and legacy PBX equipment is disconnected from the two wire infrastructure to be used. Prepare RJ11 female connection to the Line interface.

Does the NVT Phybridge PoLRE LPC support Auto MDIX?

Yes. Both GBE ports support straight through or cross over cables. The straight through cable is recommended.

Will my network management software see the NVT Phybridge PoLRE LPC and/or the PhyLink?

The PoLRE LPC and thePhyLink does not have a MAC address and acts as a bridge for the device plugged into the RJ45 port. It is not accessible from the network. Once an IP device is connected to the PhyLink it will be fully manageable as it is now on the network.

How do I find out the connection rates of the PhyLink to the NVT Phybridge PoLRE LPC?

The rate will be 10BASET regardless of distance. If the PhyLink is within 1200 feet and the cabling allows a connection the rate be 10 BASET.

How do I configure the PhyLink?

The PhyLink requires no configuration.

Why does my PhyLink not power up?

There could be multiple reasons, including wiring problems, short on wiring, distance, problem with the PoLRE port, or a problem with the PhyLink. Please see the Hardware Installation manual for details on how to troubleshoot this problem.

My PhyLink will not connect to the PoLRE, what is wrong?

There could be multiple reasons, wiring problems, distance from the PoLRE, damaged PhyLink, a damaged port on the PoLRE. Please see the Hardware Installation manual for details on troubleshooting connection problems.

Can I plug in a non-POE device into the PhyLink RJ45 connector?

Yes, you can connect non-PoE devices like a PC as long as the device is IEEE 802.3af compliant.

Does the PhyLink support Auto MDIX?

No. The PhyLink requires a straight through Ethernet cable for the IP device.
